Description

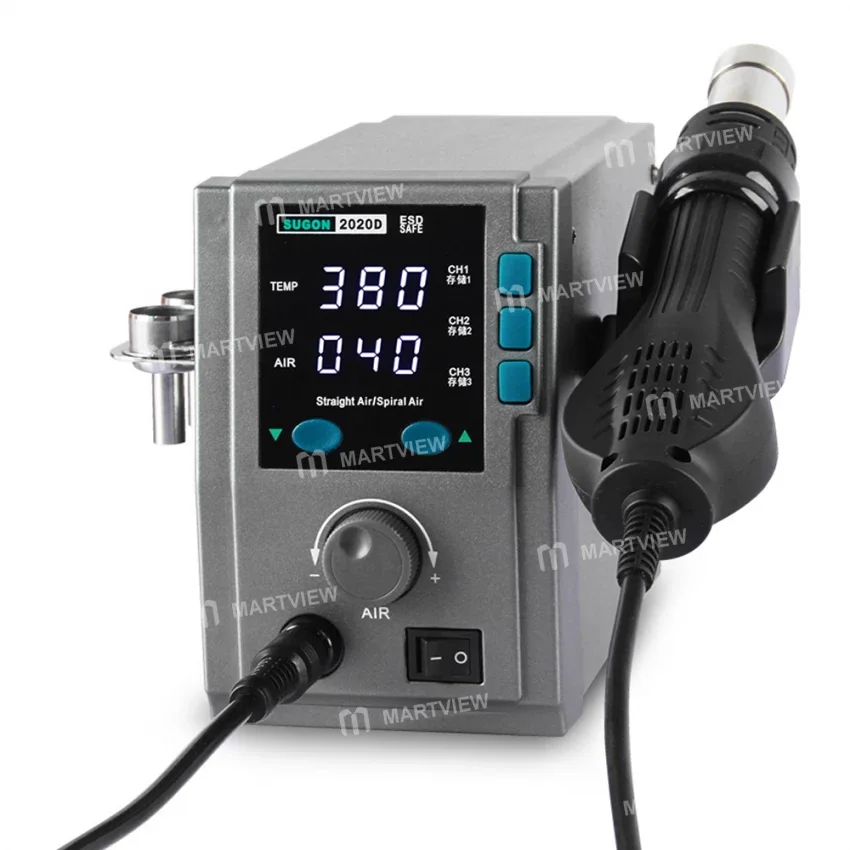

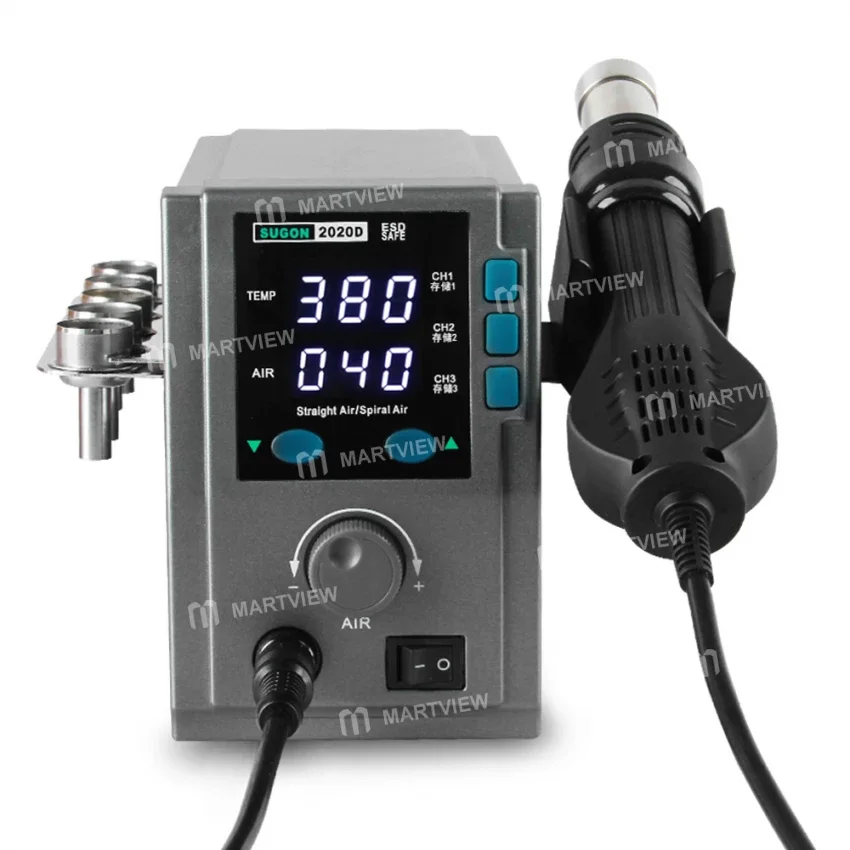

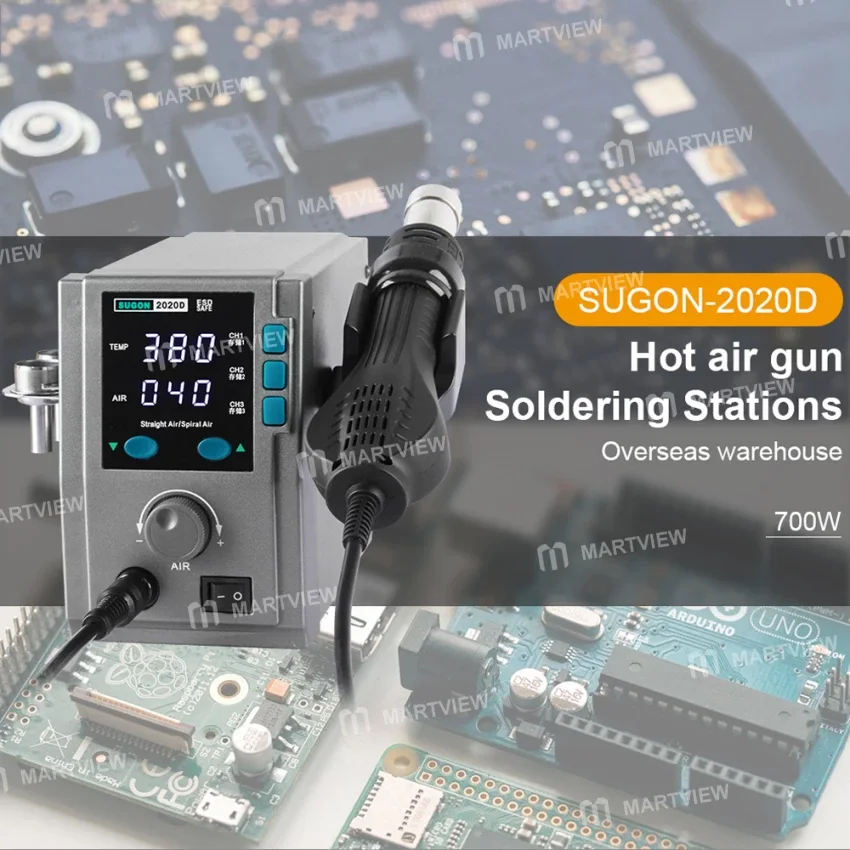

SUGON 2020D 700W Hot Air Gun Lead-Free Rework BGA SMD Soldering Station
Key features
High power and fast heating: With a power consumption of 700W, the 2020D heats up rapidly for quick thermal recovery during demanding tasks.
Accurate temperature control: It uses a microcomputer and closed-circuit sensor for precise and stable temperature control, ensuring consistent results for lead-free soldering.
Programmable memory channels: Technicians can save and recall up to three different temperature and air volume settings, allowing for efficient and repeatable rework tasks.
Brushless soft-wind fan: A long-life, low-noise brushless fan provides a gentle and controllable airflow, which is critical for protecting delicate components during rework.
Intelligent functions:
Auto-sleep mode: When the handle is placed in its stand, a magnetic induction switch automatically activates a sleep function to save energy and extend the life of the heating element.
Automatic cooling: The system automatically cools the handle when placed in the stand, protecting the heating core and ensuring longevity.
Adjustable airflow: The station allows for easy adjustment of air volume and temperature, making it suitable for a variety of components, including SOIC, CHIP, QFP, PLCC, and BGA.
Applicable Use:
Desoldering is suitable for a variety of components, such as SOIC, CHIP, QFP, PLCC, BGA (especially suitable for a mobile phone line and row line of desoldering); Used for heat-shrinkable, drying, in addition to the paint, in addition to the glue, thawing, preheating, welding, etc.
Technical Specifiations :
Power consumption: 700 w
Airflow type: brushless fan soft wind
Gas flow rate: 100 liters/minute.
Temperature control range: 100 ° C - 500 ° C / 212℉-932℉
Display form: LED digital (resolution 1 ° C)
Handle component length: 120 cm
Noise: less than 45 db
Package includes:
1 x SUGON 2020D
1 x Power Cable

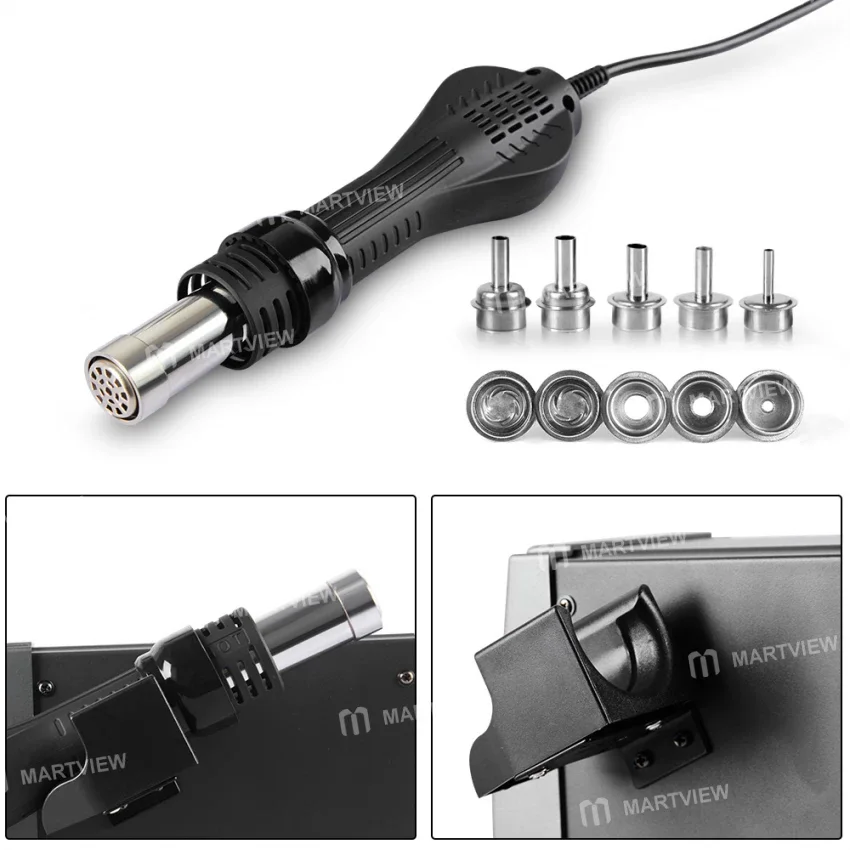

1 x Handle
2 x Cyclone nozzle (7mm,9mm)
3 x Straight nozzle (4mm,7mm,9mm)
